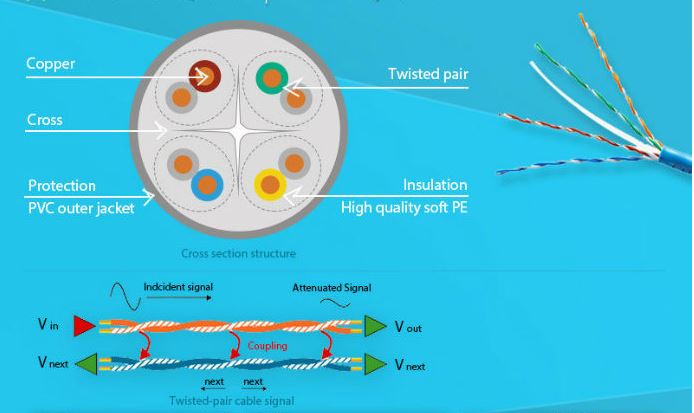

Tógáil Cábla líonra CAT5e UTP:
Teocht rátáilte: 70 céim

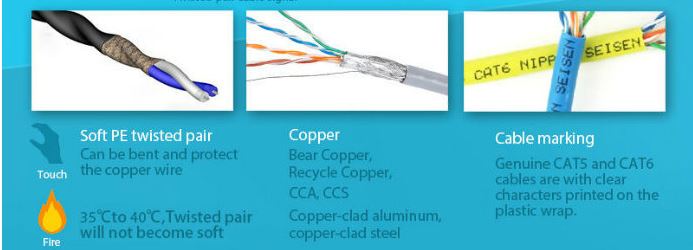

Seoltóir copair lom soladach nó shnáithe, Trastomhas sreang copair: 0.4mm (26AWG) nó 0.5mm (24AWG)
Insliú sreang: Insliú Corpoideachais le dath-códaithe, OD: 0.9mm
Twister inslithe twisted
FTP: Le sreang talún Mylar agus CCS agus scragall AL
Seaicéad PVC nó LSOH
Caighdeán: ANSI/ EIA/ TIA-568A, UL444, IEC11801.61156, IEC 60332-1

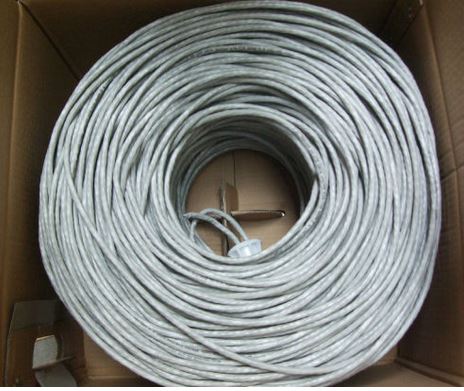

305m/bosca(1000FT)
CE, RoHS ar fáil
| Freq (Mhz) | caillteanas isteach (dB/100M) | RL (dB/100M) | Ar Aghaidh (dB/100M) | PSNEXT (dB/100M) | PSELFEXT (dB/100M) | LCL (dB/100M) | ||||||
| soladach | shnáithe | soladach | shnáithe | soladach | shnáithe | soladach | shnáithe | soladach | shnáithe | soladach | shnáithe | |
| 1 | 2 | 2.4 | 20 | 20 | 74.3 | 72.3 | 64.8 | 40 | ||||
| 4 | 3.8 | 4.6 | 23 | 23 | 65.4 | 63.3 | 52.8 | 40 | ||||
| 8 | 5.3 | 6.4 | 24.5 | 24.5 | 60.8 | 58.8 | 46.7 | 40 | ||||
| 10 | 6 | 7.2 | 25 | 25 | 59.3 | 57.3 | 40.7 | 38 | ||||
| 16 | 7.6 | 9.1 | 25 | 25 | 56.3 | 54.3 | 40.7 | 38 | ||||
| 20 | 8.5 | 10.2 | 24.3 | 25 | 54.8 | 52.8 | 38.8 | 37 | ||||
| 25 | 9.5 | 11.4 | 24.3 | 24.2 | 53.3 | 51.3 | 36.8 | 36 | ||||
| 31.25 | 10.7 | 12.8 | 23.6 | 23.3 | 51.9 | 49.9 | 34.9 | 35.7 | ||||
| 62.5 | 15.4 | 18.5 | 21.5 | 20.7 | 47.7 | 45.4 | 28.9 | 32 | ||||
| 100 | 19.8 | 23.8 | 20.1 | 19 | 44.3 | 42.3 | 24.8 | 30 | ||||
| 200 | 29 | 34.8 | 18 | 16.4 | 39.8 | 37.8 | 18.8 | 27 | ||||
| 250 | 32.8 | 39.4 | 17.3 | 15.6 | 38.3 | 26.8 | 16.8 | 26 | ||||
Is é ár bharántas innill fuála ná 1 bhliain. Geallaimid pacáistiú mín, stóráil shábháilte, seirbhísí iompair gairmiúla, creidimid i gcónaí gurb é caitheamh go maith le custaiméirí ná caitheamh go maith linn féin agus dearcadh oibre den scoth a choinneáil i gcónaí.
